This is a multi-feature model where I have used various commands to get the final desired model.
The commands used in this model are:-
1). Pad
2). Pocket
3). Holes
4). Centered Rectangle, Fillet, Circle, etc (Sketcher Commands)
5). Fillet in 3D
6). Counter Sunk Hole
 |

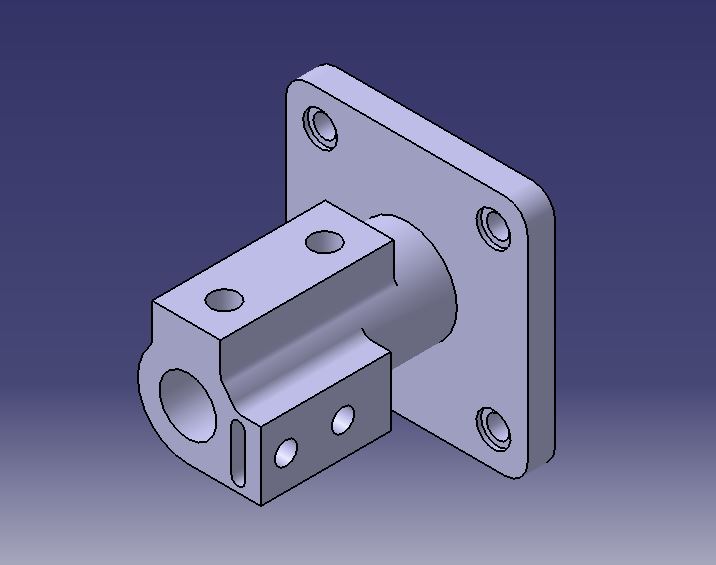

| Clip From Workspace |
 |

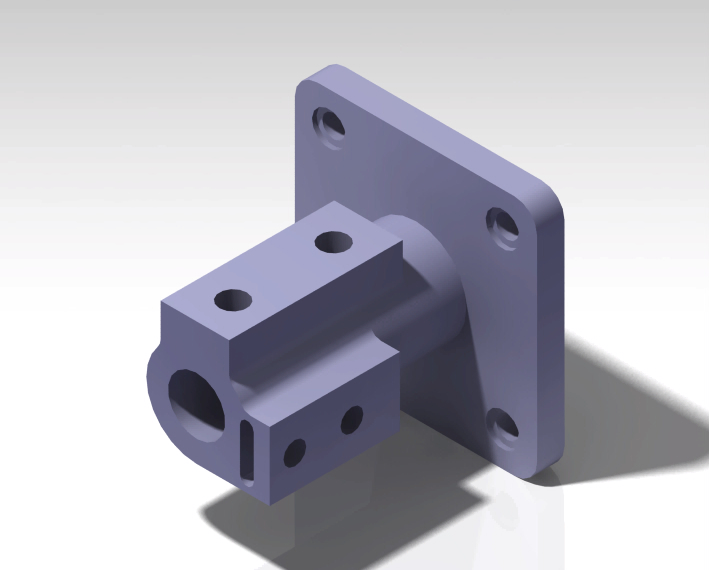

| Rendered Image In Real Life Environment |
 |
| Rendered In Studio Light Environment |
